Heat Pump Humidifier Guide: Bypass vs Fan-Powered vs Steam for HVAC Technicians

The bypass humidifier bolted to a gas furnace plenum has been the go-to solution for decades. Simple, cheap, and effective, as long as there was 130°F supply air to drive evaporation. That playbook is failing as heat pumps take over residential heating.

With supply temperatures hovering around 95°F instead of 140°F, that same bypass unit suddenly cannot hit setpoint. The homeowner complains about dry skin and static shock. Everything checks out, but humidity stays stuck at 25%.

As electrification accelerates, every technician needs to understand why traditional humidification strategies fail and what actually works.

Why Humidity Matters More Than Comfort

Most homeowners think humidity control is about comfort. They are not wrong, but they are missing the bigger picture.

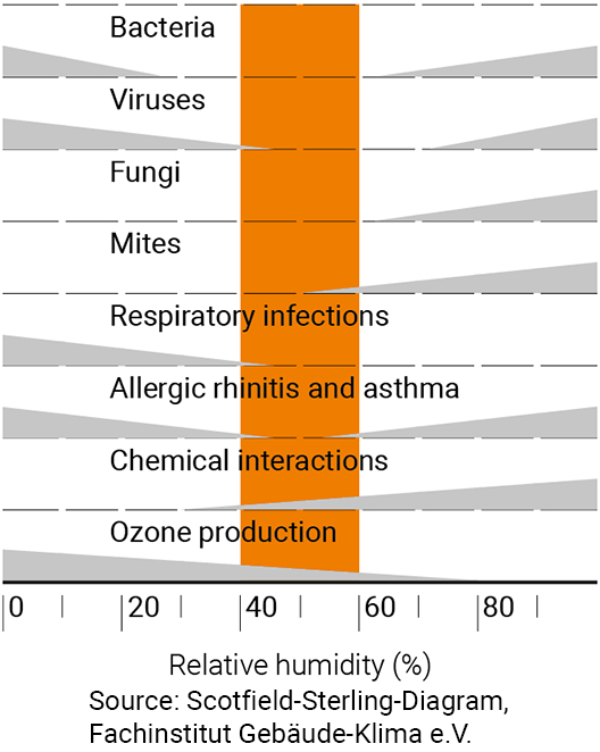

The Sterling-Scofield chart, a foundational reference in building science, maps pathogen viability against relative humidity. The “valley of death” for viruses, bacteria, and fungi sits between 40% and 60% RH.¹ Below 40%, respiratory droplets shrink rapidly through evaporation, transforming into aerosols that stay airborne for hours.

In the 40-60% range, those same droplets retain enough moisture that dissolved salts attack the viral membrane. ASHRAE’s pandemic guidance explicitly cites dry air as a factor increasing airborne virus survival and transmission.⁴

The human respiratory system depends on the mucociliary escalator, a mucus layer lining the airways that traps pathogens. Dry air dehydrates this mucus, slowing or stopping the cilia entirely. The body’s first line of defense breaks down.⁵

Beyond biology, there is the building itself. Wood is hygroscopic, constantly exchanging moisture with surrounding air. Chronically low humidity causes hardwood floors to gap, furniture joints to crack, and musical instruments to fail.

For technicians looking to deepen their understanding of how humidity interacts with building systems, Indoor Air Monitoring To Increase IAQ covers the fundamentals.

🎙️ HVAC Know It All Podcast: Marlee & Montana from Condair break down the science behind humidity, mold prevention, and why relative humidity alone does not tell the whole story.

The Heat Pump Problem Nobody Warned You About

Gas furnaces operate with temperature rises of 40 to 70°F. Return air at 70°F becomes supply air at 120 to 150°F. That high-grade thermal energy drives evaporation on a bypass humidifier panel efficiently.

Heat pumps flip this equation. To maximize COP (coefficient of performance), they move larger air volumes at lower temperature rises. Supply air typically lands between 85°F and 110°F.⁶

Why does this matter? The capacity of air to hold moisture roughly doubles every 20°F. Air at 140°F evaporates water dramatically faster than air at 95°F. A bypass humidifier rated for 12 gallons per day at 120°F plenum temperature might deliver only 4 to 5 GPD in a heat pump application.⁷

The callback pattern is familiar to techs who have tried this: the unit runs continuously but humidity stays pegged at 20 to 25%. Everything looks right. But the physics simply do not work when supply air is too cool.

There is another wrinkle: the “cold blow” effect. Heat pump supply air at 95°F feels cooler on skin than body temperature. Add an evaporative humidifier that drops supply temp another 3 to 5°F through adiabatic cooling, and homeowners complain about drafts even when the system maintains setpoint.

For a deeper dive on heat pump operation and why supply temperatures vary, see Heat Pump Operating Costs in Cold Weather: What Techs Need to Tell Customers.

📺 HVAC Know It All YouTube: Gary provides a visual walkthrough of whole-home humidifier operation and the evaporation process that depends on supply air temperature.

Humidifier Types: Making the Right Call

Bypass Humidifiers

These rely on pressure differential between supply and return plenums to push air through a bypass duct and across a water-saturated panel.

The reality: They are cheap, simple, and work great on gas furnaces. On heat pumps, capacity drops 30 to 60% due to low supply temps.⁷ Traditional designs also waste significant water: for every gallon evaporated, 3 to 14 gallons flow down the drain.⁸

Best application: Gas or oil furnaces with high supply temperatures. Not recommended for heat pumps.

Fan-Powered Humidifiers

These mount directly to the plenum with an integral fan that draws air across the water panel regardless of system static pressure.

The reality: Better for heat pumps than bypass, but still temperature-dependent. Newer models like the AprilAire 720 optimize panel surface area and air velocity specifically for heat pump applications.³

Best application: Heat pumps with moderate humidity needs, tight mechanical rooms, variable-speed systems.

Steam Humidifiers

These boil water electrically to create steam injected directly into the supply duct. Performance is completely independent of supply air temperature.

The reality: The only technology that delivers full rated capacity regardless of HVAC operation. Higher upfront and operating costs, but eliminates the heat pump compatibility problem entirely.

Best application: Heat pumps, geothermal systems, large homes, applications requiring precise humidity control.

The Water Waste Problem and How New Tech Solves It

Traditional flow-through humidifiers waste enormous amounts of water. The “rinse” function that prevents mineral scale buildup sends 3 to 14 gallons down the drain for every gallon evaporated.⁸ In high-demand climates, that is thousands of gallons per heating season. Homeowners notice, and it is the number-one objection when selling whole-home humidification.

AprilAire’s HydroCore technology, introduced in the Model 720 (2024) and Model 620 (2025), addresses this with a recirculation valve that cycles water across the panel instead of single-pass drainage. The 720 achieves 60% reduction in wastewater; the 620 hits 55%.³

View this post on Instagram

A post shared by Gary McCreadie HVAC/R Tech/Business Owner (@hvacknowitall1)

The one-piece HydroCore cartridge combines the water panel, feed tube, distribution tray, and scale control insert into a single component with pop-in/pop-out replacement in under 60 seconds. For technicians, this means faster installs, reduced callbacks from leak issues, and a compelling sustainability story for environmentally conscious customers.

🎙️ HVAC Know It All Podcast: Gary & Chris Howells how heat pumps and lower airflow in modern systems change humidifier selection, plus why hot water feed matters for evaporative performance.

Installation: Where Most Callbacks Originate

Steam Absorption Distance

The most common failure mode for steam humidifiers is condensation in ductwork. Steam injected into the supply must fully absorb into the airstream before contacting any surfaces: elbows, dampers, coils, turning vanes.

Factors affecting absorption distance include air temperature, air velocity, and existing humidity level.² Standard dispersion tubes may require 3 to 6 feet of straight duct. High-efficiency dispersion panels can reduce this to under 12 inches.²

The rule: Always verify manufacturer absorption distance charts based on specific CFM, duct size, and steam output. Never guess.

Understanding dew point is essential here. It tells you exactly when moisture will condense on a surface based on that surface’s temperature.

📺 HVAC Know It All YouTube: Gary covers common troubleshooting scenarios for humidifiers, including issues that stem from installation mistakes rather than component failures.

Hot vs. Cold Water Feed

For bypass and fan-powered units on heat pumps, hot water feed is strongly recommended. Supplying 120°F water from the water heater adds thermal energy to the evaporation process, increasing capacity 20 to 30% compared to cold water.⁹

For steam humidifiers, cold water is typically preferred. Hot water can introduce more sediment from the water heater tank, shortening canister life.¹⁰

Water Quality Considerations

Electrode steam humidifiers rely on dissolved minerals to conduct electricity between electrodes. Do not use RO or DI water. It will not conduct current and the unit will not boil.

Softened water replaces calcium with sodium, which can cause the humidifier to reach maximum amperage too quickly, leading to frequent draining.¹⁰ For areas with extremely hard water, resistive steam units can run on filtered water, reducing scale buildup.

The Building Envelope Connection

Here is what separates good techs from great ones: understanding that humidification load is fundamentally a function of air leakage.

Cold outside air has extremely low moisture content. When it infiltrates a home and gets heated, relative humidity plummets. A leaky house constantly replaces humid indoor air with dry outdoor air. The humidifier fights a losing battle.

Sometimes the best “humidifier” is a caulking gun. Reducing air leakage from 5 ACH50 to 3 ACH50 can cut humidification load by 40%.¹¹ A tight envelope might eliminate the need for mechanical humidification entirely.

This connects directly to heat pump installation considerations. When quoting a heat pump system, evaluating the building envelope tells you whether humidification will be a requirement or an option.

🎙️ HVAC Know It All Podcast: John Ellis walks us through a systematic approach to diagnosing comfort complaints that often trace back to humidity and ventilation issues, not equipment failures.

Dew Point vs. Relative Humidity: The Metric That Actually Matters

Most homeowners, and many techs, focus on relative humidity percentage. But RH changes with temperature. The same absolute moisture content reads as different RH at different temperatures.

Dew point is the absolute measure. Indoor dew point below 60°F prevents mold growth on cool surfaces. In winter, the practical limit is much lower to prevent window condensation.¹²

The dew point of window glass depends on outdoor temperature and the window’s U-value. A high-performance triple-pane window stays warmer, allowing 40% indoor RH even at 0°F outside without condensation. A single-pane window might sweat at 20% RH when it is 20°F outside.¹² Set humidistats based on the weakest link in the thermal envelope.

For a deeper technical dive, Understanding Dew Point To Be A Better HVAC Technician covers the psychrometric fundamentals every tech should know.

📺 HVAC Know It All YouTube: Gary demonstrates the relationship between temperature control and humidity management.

The Business Case: Maintenance Revenue Done Right

Humidifiers are high-maintenance equipment. Unlike a furnace that might run years with minimal attention, a humidifier becomes a problem without annual service.

• Evaporative units: Panels accumulate mineral scale and require annual replacement.
• Steam units: Canisters have finite lifespans (typically 1000 to 2000 hours of operation).

Include humidifier service in standard maintenance agreements. It ensures the system actually works when needed and justifies premium service tier pricing.

The ethical approach: educate rather than pressure. Show homeowners their current RH reading (often below 20% in winter). Explain the 40-60% health zone. Let data drive the conversation.

For more on building recurring revenue through maintenance agreements, The September Sweet Spot covers timing strategies that maximize both customer value and schedule efficiency.

Putting It All Together

The era of one-size-fits-all humidification is over. Heat pump adoption demands that technicians understand the thermodynamic differences between heating sources, select appropriate technology for each application, and install with precision.

For heat pump systems: Steam humidifiers eliminate compatibility concerns entirely. Fan-powered units with hot water feed can work for moderate humidity needs. Bypass units are generally not recommended.

For gas furnace systems: Bypass and fan-powered units remain viable. New recirculation technology addresses water waste concerns.

For all systems: Evaluate the building envelope before sizing humidification. Set humidity limits based on window performance to prevent condensation callbacks. Include humidifier service in maintenance agreements.
